The industrial and performance textile markets are shifting from basic woven materials to highly engineered, dimensionally stable structures to meet stringent 2026 performance mandates. This transition is driving the global knit fabric market toward a projected $294 billion by 2035, representing a 4.87% compound annual growth rate. Procurement managers and textile engineers face a critical challenge: balancing the high initial setup costs of warp knitting against the long-term return on investment. This ROI is realized through superior dimensional stability, tear resistance, and extreme production speed. This guide deconstructs the technical specifications, machine capabilities, and advanced 2026 applications of warp knitted fabric to facilitate precise vendor evaluation and material specification. We will explore how these textiles outperform traditional options in high-stress environments, providing you with the data needed to make informed sourcing decisions for your next major production run.
Structural Superiority: Warp knitting utilizes vertical interlocking loops (overlap/underlap) to deliver measurable modulus and dimensional stability unmatched by weft knitting.
Advanced 2026 Applications: 3D spacer fabrics and Non-Crimp Fabrics (NCFs) are dominating lightweight engineering, aerospace composites, and medical filtration.
Sustainable Integration: Breakthroughs in SIRO Compact spinning now allow for the integration of cellulosic fibers (TENCEL™) into high-speed warp knitting, alongside the rising use of recycled ocean plastics, mitigating historical reliance on virgin synthetics.
Total Cost of Ownership (TCO): While initial machine setup and tooling costs are high, the extreme production speeds (up to 3500 courses/minute) yield significant economies of scale for high-volume industrial runs.
To fully grasp the performance benefits of these textiles, you must examine their micro-level architecture. Yarns run lengthwise, which is known as the warp direction. Each needle in the production machine is typically fed by its own individual yarn. This parallel feeding system creates a highly stable interlocking matrix that resists deformation under stress. The "Overlap" refers to the yarn placed directly on the needle to form a loop. The "Underlap" is the segment of yarn connecting two overlaps in adjacent courses. The specific ratio and direction of closed laps versus open laps dictate the ultimate physical properties of the material. These precise parameters determine the fabric's tear strength, run-resistance, and anti-snagging capabilities. By adjusting the underlap length, engineers can increase the fabric weight and lateral stability, tailoring the material for specific industrial applications.
Textile engineers manipulate lapping movements to create distinct structural profiles. There are four foundational stitches used in modern production facilities to achieve varying degrees of elasticity and strength.
Pillar / Chain Stitch: This stitch forms vertical chains on a single needle. It requires minimal yarn consumption and provides extreme longitudinal stability, often used as a base for more complex structures.

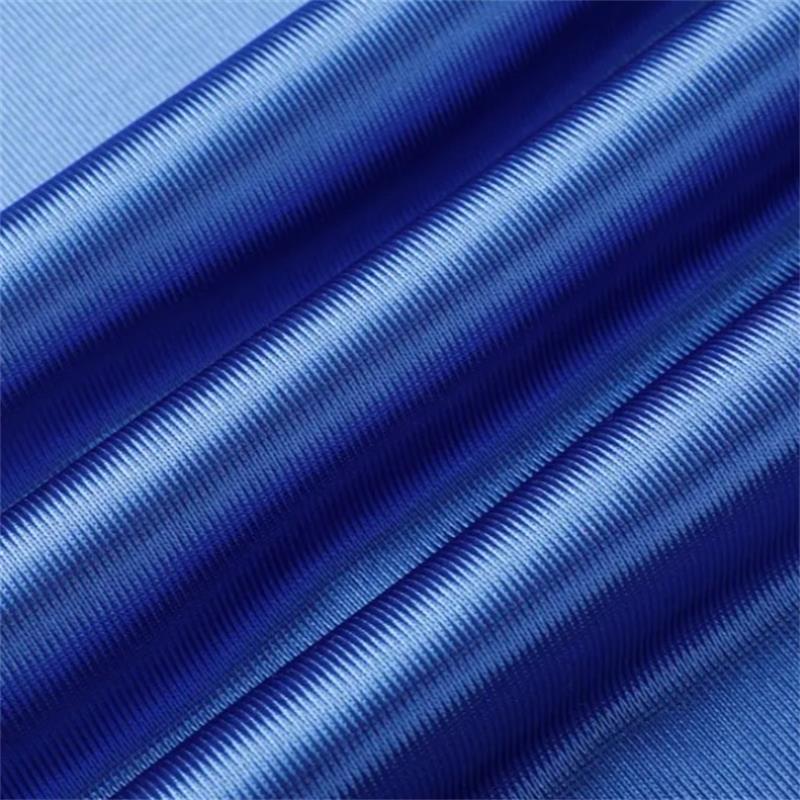

Tricot Stitch (1 and 1 lapping): Loops alternate across two adjacent wales. This movement creates a lightweight, Versatile Warp Knitted Fabric structure suitable for diverse applications ranging from apparel to automotive interiors.
Cord Stitch (2 and 1 lapping): An extended lateral movement increases transverse stability. It also enhances overall fabric weight and surface coverage, making it ideal for heavy-duty usage.
Atlas Stitch: Lapping continues in one direction for several courses before reversing. This technique is ideal for generating specific engineered patterns and diagonal surface effects.
Procurement teams must understand the technical distinctions between knitting methods to source the correct material. Warp knits use 4,000 to 5,000 or more needles operating simultaneously in a zig-zag movement. Weft knits rely on a single yarn or a few yarns moving horizontally across the needle bed. Dimensional stability is a primary differentiator here. Warp knits offer controlled stretch with a measurable modulus. They resist edge curling and will not ladder or run under stress. Conversely, weft knits offer high bi-directional mechanical stretch but suffer from poor stability and severe edge curling. Material compatibility also differs significantly between the two methods. Warp knitting historically requires high-tensile synthetic yarns to withstand high machine tension. Weft knitting easily accommodates almost any spun or natural yarn.
| Evaluation Criteria | Warp Knitting Technology | Weft Knitting Technology |
Yarn Direction | Vertical (Lengthwise parallel feeding) | Horizontal (Widthwise sequential feeding) |
Dimensional Stability | Excellent (High Modulus, retains shape) | Poor (Prone to distortion and stretching) |
Run Resistance | Run-proof / Ladder-resistant structure | Easily ladders if a single loop is snagged |
Production Speed | Extremely High (Up to 3500 courses/min) | Moderate to Low (Depends on feeders) |
Edge Curling | Minimal to none | High tendency to curl at the edges |
Total Cost of Ownership heavily favors warp technology for large-scale manufacturing operations. Producing High Quality Warp Knitted Fabric requires significant upfront capital investment. Setup time and tooling costs are substantial because thousands of yarns must be warped onto a beam before production begins. However, the process achieves superior economies of scale for industrial volumes. The rapid production speed drastically lowers the per-unit cost over long runs. Weft knitting remains cost-effective for short runs and custom apparel prototyping. Yet, it frequently fails to meet the rigorous demands and volume requirements of high-stress industrial applications.
Tricot machines dominate the production of fine, dense textiles used globally. Standard Tricot operates at high-speed production rates, reaching 2000 to 3500 courses per minute. It features fine vertical ribs on the face and horizontal ribs on the back. This is the standard for Premium Warp Knitted Fabric used in intimate apparel, swimwear, and automotive headliners. Lock-Knit features two vertical loops on the face and two underlaps on the back. This creates a completely run-proof structure often used for linings and durable "sharkskin" fabrics. Milanese is a smoother, highly stable variant. It features a distinct diagonal rib on the back, though it incurs higher costs and lower production yields. Simplex operates like two Tricot machines working back-to-back. It produces a dense, double-faced fabric often sueded for industrial gloves or luxury accessories.
Raschel machines handle heavier yarns and create intricate, open designs that Tricot machines cannot produce. Standard Raschel utilizes coarser yarns, typically 12 to 32 pins per inch. It operates at 500 to 2000 courses per minute. This machine is capable of complex, open-work structures including mesh, lace, netting, and heavy geotextiles used in civil engineering. Ketten or Chain Raschel produces raised patterns with shell stitches. It offers higher elasticity when integrated with elastane yarns, making it suitable for foundation garments and technical stretch wear.
Advanced thermal management relies heavily on 3D spacer fabrics for superior airflow. Manufacturers use double needle bar Raschel machines to create two distinct fabric faces. These faces are connected by Z-axis pile yarns that act like miniature springs. The industry is rapidly transitioning from polyurethane foam to Breathable Warp Knitted Fabric. This shift impacts automotive seating, medical pressure-relief mattresses, and advanced athletic footwear. The shear strength advantages of X-type cross-binding pile yarns are significant. They outperform traditional I-type or V-type orientations in load-bearing scenarios, preventing material collapse under heavy weight.
Lightweight engineering demands maximum structural reinforcement without added bulk. Non-Crimp Fabrics (NCFs) ensure reinforcement yarns remain straight and uncrimped. This allows them to absorb maximum force in fiber-reinforced composites (FRCs). Multi-axial warp knitting places yarns at 0°, 90°, +45°, and -45° angles. These structures are critical for wind turbine blades, aerospace fuselage segments, and textile concrete reinforcement. Draping technologies use engineered "yarn reserves." This allows 2D fabrics to conform to complex 3D molds without wrinkling high-modulus carbon or glass fibers during the resin infusion process.
Performance sectors require precise material engineering to ensure safety and functionality. Athletic, medical, and tactical wear frequently utilize Stretch Nylon Warp Knitted Fabric. It provides superior moisture management, medical compression, and occupational safety. It also serves as abrasion-resistant uniform paneling for military and law enforcement personnel. Industrial filtration relies on customizing machine speed and loop density. This customization achieves precise micron ratings for liquid and air filtration systems, ensuring environmental compliance in manufacturing plants.
Procurement must acknowledge inherent material limitations before finalizing specifications. Elasticity constraints are a primary concern for product developers. Without the addition of elastane, warp knits lack multi-directional stretch. This limits their use in certain ergonomic applications requiring high flexibility and recovery. Setup complexity and prototyping costs present significant financial hurdles. The requirement to warp thousands of individual yarns onto a beam makes small-batch prototyping financially unviable for startups. Environmental scrutiny is also increasing globally. Industrial washing cycles pose microplastic shedding risks associated with synthetic Nylon Warp Knitted Fabric, prompting a need for better filtration and sustainable alternatives.
Sustainability mandates are driving rapid technological innovation across the textile supply chain. The lint contamination challenge historically hindered natural fiber integration. Warp knitting machines require high yarn tensile strength. They historically rejected short-staple natural fibers due to lint accumulation and severe machine jamming. A major 2026 breakthrough addresses this limitation directly. KARL MAYER and Lenzing collaborated using advanced SIRO Compact spinning technology. The outcome is the successful processing of TENCEL™ Lyocell and Modal fibers on E 28 gauge machines. This drastically reduces hairiness and enables sustainable, biodegradable warp knits. It perfectly complements the growing adoption of recycled ocean plastics in industrial applications.
Accurate specification ensures optimal field performance and reduces product failure rates. Engineers must evaluate tensile and tear strength rigorously. This involves assessing load-bearing capacity based on stitch density and yarn denier. Abrasion resistance is equally critical for longevity. The interlocking structure's ability to prevent snagging and pilling in high-friction environments must be tested using standardized Martindale or Wyzenbeek methods. Moisture and thermal management require precise specification of pore size and Z-axis thickness for spacer fabrics. Finally, mandate strict compliance and certifications from your suppliers. Require ISO 9001 for manufacturing consistency and OEKO-TEX for chemical safety. Specify exact FR (Flame Retardant) or AM (Anti-Microbial) topical treatments based on end-use requirements to ensure the Warp Knitted Fabric meets all regulatory standards.
Define Load Requirements: Calculate the exact tensile strength needed for the application.
Select Machine Type: Choose Tricot for flat surfaces and Raschel for 3D or open mesh structures.
Determine Yarn Composition: Decide between high-tenacity synthetics or new SIRO spun cellulosics based on sustainability goals.
Specify Finishing Treatments: Outline necessary chemical coatings like flame retardants or water repellents.
Request Prototype Testing: Conduct abrasion and modulus testing on a sample run before full-scale production.
Warp knitting remains the undisputed choice for applications demanding structural integrity, dimensional stability, and high-volume production efficiency. Buyers must align their specification process with the correct machine type and material composition to maximize ROI. Select Tricot for flat, dense materials and Raschel for open, 3D structures. Always mandate rigorous testing for modulus and abrasion resistance to ensure field reliability.
Audit current material specifications to identify areas where woven fabrics can be replaced by high-stability knits.
Engage Tier-1 textile engineers to prototype advanced Non-Crimp Fabrics for composite reinforcement projects.
Request SIRO Compact spun cellulosic blends from vendors to meet 2026 sustainability and biodegradability targets.
Establish standardized TCO models that factor in long-term durability against initial tooling costs.
A: The primary difference lies in yarn direction. Warp knits use vertical, interlocking yarns fed simultaneously, providing high dimensional stability. Weft knits use horizontal, looping yarns, offering high stretch but lower stability.
A: It is preferred due to its run-resistance, high tear strength, and anti-snagging properties. Furthermore, it can be engineered into complex 3D spacer or multi-axial structures for heavy-duty use.
A: Yes. Latest SIRO Compact spinning techniques allow cellulosic fibers like Lyocell to be warp-knitted without machine contamination. Recycled synthetics are also widely adopted.
A: A 3D spacer fabric is created using a double needle bar Raschel process. It connects two outer fabric layers with a monofilament pile yarn, providing excellent breathability and cushioning.
A: Initial tooling and warping costs are significantly higher. However, the extreme production speed drastically lowers the per-unit cost for large-scale manufacturing, making it cost-effective for volume.
A: NCFs are reinforcement textiles where yarns are kept perfectly straight. This lack of crimp maximizes load absorption and structural integrity in advanced composite materials.
