Selecting the wrong fabric structure for a garment production run does not just impact aesthetics; it leads to catastrophic manufacturing failures. Production lines face irreversible edge curling on the cutting table or seam snapping during consumer wear. Buyers, designers, and manufacturers often conflate yarn composition with fabric structure. This fundamental error leads to misaligned specifications regarding stretch capacity, drape, and long-term durability. This guide deconstructs the engineering behind knitted textiles. It provides a technical evaluation framework to match specific knit structures, such as warp versus weft, and yarn blends with exact commercial and functional requirements. Industry professionals can utilize this data to identify knits instantly, select appropriate machinery, and specify the optimal Knitted Fabric for upcoming production runs. Mastering these structural principles eliminates costly production errors and improves garment performance.
Structural Distinction: All knitted textiles are defined by their loop construction (Wales and Courses), but the choice between Weft (horizontal) and Warp (vertical) knitting dictates the fabric's run-resistance and stretch direction.
Visual Identification: True knits can be verified in seconds through the loop-structure visual check, the 4-way stretch test, and the crush-and-release wrinkle test.
Manufacturing Realities: High-stretch knits require specialized tooling (ballpoint needles, walking feet) and strict handling protocols to prevent dimensional distortion and edge curling during assembly.
Lifecycle Cost: The Total Cost of Ownership (TCO) for knitwear includes post-purchase consumer care; specifying anti-pill finishes and educating consumers on proper storage (folding vs. hanging) drastically reduces return rates.
Misidentifying a fabric at the sourcing stage leads to incorrect pattern drafting and machine setup. Woven manufacturing techniques will instantly destroy knitted materials. Production facilities must establish a reliable identification protocol before cutting any yardage. Quality control teams execute three rapid physical tests to verify fabric structure on the receiving dock.
Visual Thread Analysis (The Loop Test): Examine the micro-structure of the textile under a magnifying loupe and good lighting. Knits consist of continuous interlocking loops. One loop pulls through another to create a flexible, interconnected chain. Contrast this directly with wovens. Woven textiles feature a perpendicular criss-cross pattern. Warp and weft yarns pass over and under each other in a rigid, mathematical grid. If the microscopic view reveals interlocking circles or teardrop shapes, the material is a knit.
The Dimensional Stretch Test: Apply lateral and longitudinal tension to the material. Grasp the fabric with both hands and pull horizontally from selvedge to selvedge, then vertically along the grainline. Knits inherently yield and stretch due to loop expansion. The loops physically open up under tension and return to their original shape when released. Wovens remain entirely rigid under the same tension. They only stretch slightly on the bias (the 45-degree diagonal). Even wovens containing high percentages of elastane restrict stretch significantly compared to a basic knit structure.
The Wrinkle Recovery Test: Crush the fabric tightly in the palm of the hand for five to ten seconds, then release it abruptly. Knits rapidly spring back to their original state. They show minimal creasing because the flexible loop structure absorbs and distributes the mechanical stress across multiple connection points. They are inherently non-iron materials. Wovens will retain sharp, visible wrinkles. The rigid grid structure of a woven fabric cannot easily dissipate the crushing force, resulting in permanent creases until heat and steam are applied.
| Property | Knitted Fabric | Woven Fabric |
Construction Method | Interlocking loops of continuous yarn | Perpendicular interlacing of warp and weft yarns |
Inherent Stretch | High (Expands mechanically due to loop structure) | Low (Rigid unless woven with elastane fibers) |
Wrinkle Resistance | Excellent (Naturally springs back into shape) | Poor (Requires ironing or chemical treatments) |
Edge Fraying | Does not fray (May curl or ladder/run) | Frays heavily at raw edges (Requires finishing) |
Production Speed | Extremely fast (Fewer setup steps) | Slower (Requires complex warping processes) |
Understanding the foundational matrix of a knit is non-negotiable for production success. The micro-structure dictates exactly how the fabric behaves under tension, how it drapes on the human body, and how it reacts to industrial sewing machinery. Textile engineers define this matrix using two primary terms. Wales are the vertical columns of stitches running down the length of the fabric, corresponding to the warp direction in wovens. Courses are the horizontal rows of stitches running across the width of the fabric. The specific ratio of wales to courses, combined with the yarn thickness, determines the overall fabric density, gauge, and weight.
Weft knitting utilizes a single continuous yarn fed into the machine. This yarn loops horizontally across the fabric panel, building the material one course at a time. Manufacturers produce weft knits on large circular knitting machines for tubular fabrics or flatbed knitting machines for shaped panels and selvedge-to-selvedge yardage.
These fabrics exhibit extremely high elasticity, making them the global standard for comfortable, form-fitting apparel. However, they possess a significant structural vulnerability: they are highly prone to unraveling. If a single stitch breaks, the fabric will "run" or ladder vertically down the wale, destroying the garment. Furthermore, circular knitting machines often create a "spiral effect" or torque within the fabric. This means the wales and courses rarely form a perfect 90-degree angle. This spiraling causes side seams on cheaper t-shirts to twist toward the front of the body after the first wash if the pattern pieces are not cut carefully to accommodate the torque.
Primary sub-types include:
Jersey: Features distinct vertical ribs on the face and horizontal semi-circles on the back. It curls aggressively toward the face when stretched or cut.
Interlock: A double-knit construction showing vertical ribs on both sides. It is thicker, heavier, highly stable, and completely resists edge curling.
Purl: Features an identical front and back appearance with horizontal ridges. It offers robust 2-way stretch and a highly textured, bulky surface ideal for sweaters.
Warp knitting operates on a completely different mechanical principle, requiring complex, heavy-duty machinery. Multiple parallel yarns are looped vertically and simultaneously. Each individual needle on the machine utilizes its own dedicated yarn, fed from a massive warp beam.
This vertical, interlocking construction creates a highly run-resistant material. Warp knits are essentially ladder-proof; a broken yarn will not cause the entire column to unravel. They offer superior shape retention, dimensional stability, and structural integrity. They are significantly less elastic than weft knits, making them ideal for structured garments, foundation wear, and technical applications like automotive upholstery and medical textiles.
Primary sub-types include:
Tricot: Displays fine vertical ribs on the face and horizontal ribs on the back. It offers excellent drape, resists static cling, and serves as the standard for lingerie and athletic linings.
Raschel: Engineered to create complex, open-work 3D textures and lace effects. It utilizes heavier yarns and multiple guide bars for highly decorative, yet structurally sound, applications.
Milanese: Features diagonal interlocking yarns. It is exceptionally durable, highly run-resistant, and offers a smooth, premium finish often used in high-end gloves and vintage lingerie.
Mapping specific knit structures to their optimal end-use applications prevents costly design failures. Product developers must evaluate weight, stretch capacity, recovery percentage, and surface texture before finalizing material sourcing contracts.
These materials form the backbone of modern casual wear, loungewear, and daily basics. They prioritize comfort, mobility, and ease of consumer care.
Cotton Lycra Jersey: The undisputed industry standard for t-shirts, undergarments, and leggings. It typically blends 90-95% cotton with 5-10% spandex to achieve a robust 4-way stretch with excellent recovery. Implementation Risk: The raw edges will aggressively curl toward the right side (face) when cut. Factories must stabilize seams with clear elastic or specialized tapes during production to maintain shape.
Interlock: A highly stable double-knit construction created on a machine with two needle beds. Both sides display vertical rows, making the fabric completely reversible. It offers a mechanical 2-way stretch without the need for high spandex content. Advantage: The edges do not curl. This makes it highly stable for manufacturing, ideal for precise tailoring, babywear, and beginner sewing projects.
Rib Knit: Features pronounced vertical textured stripes created by alternating knit and purl stitches in the same course (e.g., 1x1 or 2x2 ribbing). It is highly elastic in the crosswise direction. This Stretch Knitted Fabric is strictly required for cuffs, collars, neckbands, and waistbands where maximum stretch and immediate recovery are mandatory.
Double Brushed Poly (DBP): Mechanically brushed on both sides using fine wire cylinders to create an ultra-soft, peach-fuzz surface. It exhibits zero shrinkage, high color retention, and exceptional fluid drape. It remains the premier choice for fluid dresses, leggings, and lightweight cardigans.
Winter apparel, outerwear, and structured garments require thicker yarns, higher gauges, and modified loop structures to trap dead air for heat retention and maintain architectural shape.
French Terry: Features a smooth, flat jersey face with unbrushed, prominent loops on the reverse side. It provides excellent moisture management by absorbing sweat through the back loops. It drapes beautifully when blended with rayon, modal, or bamboo fibers.
Sweatshirt Fleece: Shares the exact same base construction as French Terry. However, the reverse loops are heavily brushed and broken during the finishing process. This creates a thicker, fuzzier, warmer material that possesses significantly less stretch than its unbrushed counterpart.
Bullet & Liverpool: Characterized by a distinct crepe-like, pebbled surface texture created through specialized yarn tensioning. It offers robust 4-way stretch combined with a highly structured, bouncy drape. It is ideal for form-fitting garments, structured skirts, and oversized bows.
Cardigan Knits: Utilizes specialized "tuck stitches" during production, where the needle holds multiple loops before knitting them together. This creates a thicker, modified rib structure (half-cardigan or full-cardigan). It forms the standard foundation for heavy winter sweaters and premium knit outerwear.
Advanced knitting techniques allow for intricate geometric patterns, delicate lace effects, and highly realistic synthetic fur alternatives integrated directly into the fabric structure.
Jacquard vs. Intarsia (The Float Test): Both techniques produce multi-colored patterns without printing. Quality control teams evaluate them by looking at the reverse side. Jacquard inherently carries "floats" (loose strings of yarn carried across the back between color changes). Intarsia has no floats. The colors join exactly at the pattern edge, creating a clean, single-layer reverse side.
Pointelle: Utilizes engineered "miss stitches" or transfer stitches. The machine deliberately moves loops to adjacent needles, creating intentional, lace-like holes and feminine geometric patterns throughout the material.
Cable Knit: Engineered via complex loop transfer technology. The machine physically crosses groups of stitches over one another to create raised, three-dimensional rope textures that mimic traditional hand-knitting.

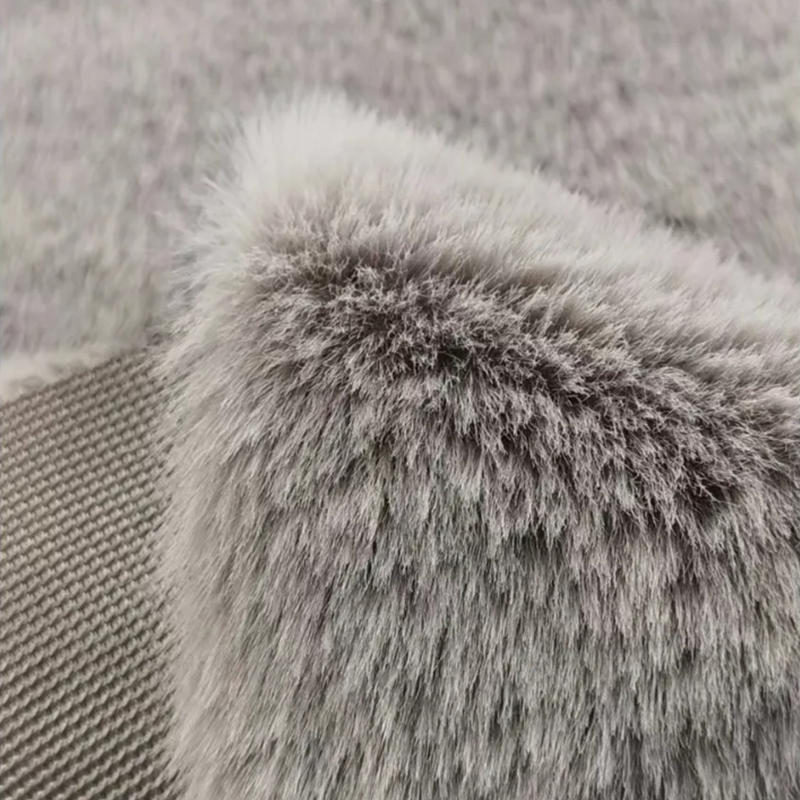

Sliver Knit (Faux Fur): Locks long staple fibers (the sliver) directly into the knit base structure during the knitting process. It serves as a highly effective synthetic fur. It is lighter, more elastic, highly breathable, and much easier to clean and store than genuine animal fur.
Procurement teams utilize this technical reference chart to align fabric choices with factory production capabilities and machinery.
| Fabric Type | Construction | Stretch Direction | Edge Curling Behavior | Optimal Application |
Cotton Lycra Jersey | Weft (Single Bed) | 4-Way (High Recovery) | High (Curls to face) | T-shirts, Leggings, Underwear |
Interlock | Weft (Double Bed) | 2-Way (Mechanical) | None (Highly stable) | Tailored knits, Babywear, Polos |
Tricot | Warp (Multi-bar) | 2-Way (Minimal) | None (Ladder-proof) | Activewear linings, Lingerie |
French Terry | Weft (Looped back) | 2-Way (Moderate) | Moderate (Manageable) | Loungewear, Hoodies, Joggers |
Rib Knit | Weft (Alternating) | 2-Way (Maximum recovery) | None (Contracts heavily) | Cuffs, Collars, Waistbands |
Fabric structure dictates mechanical behavior, drape, and stretch, but yarn composition dictates breathability, hand-feel, thermal regulation, and chemical resistance. Manufacturers must evaluate the raw fiber profile to ensure the final garment meets strict consumer performance expectations.
Natural fibers offer unparalleled comfort, moisture management, and biodegradability. They remain essential for premium apparel lines and sensitive skin applications.
Cotton and linen provide exceptional air circulation and are highly hydrophilic (moisture-absorbent). This makes them the optimal choice for Breathable Knitted Fabric applications in summer collections. Linen adds a distinct micro-texture, high tensile strength, and a crisp, cooling drape to the garment, though it reduces overall elasticity.
Wool and silk serve entirely different functional purposes. Wool provides natural moisture-wicking properties and superior thermal insulation by trapping dead air within the microscopic crimp of the fiber. Silk offers unparalleled drape, natural luster, and a premium Soft Knitted Fabric hand-feel. Blending silk with standard cotton elevates the perceived value, sheen, and softness of basic jersey knits.
Synthetic fibers dominate the activewear, outerwear, and fast-fashion sectors due to their extreme durability, low production cost, and engineered performance traits.
Polyester offers extremely high tensile strength, abrasion resistance, and excellent colorfastness. It serves as the mandatory base for sublimation printing and complex ombre designs because the synthetic polymers bond permanently with disperse dyes. Acrylic is engineered specifically as a synthetic mimic for wool. It produces a Lightweight Knitted Fabric that is soft, warm, and highly resistant to moths, though it requires careful chemical finishing to prevent static buildup and pilling.
Athletic and swimwear fabrics rely heavily on Nylon (Polyamide) and Spandex (Elastane) blends. Swimwear requires a certified UV 50+ rating and strict chlorine resistance to prevent fiber degradation. Athletic knits focus entirely on rapid moisture-wicking (capillary action) and robust 4-way stretch. Compression knits utilize high-elastane blends (often exceeding 20%). Textile engineers design them to provide a strict ergonomic fit, promote blood flow, and aid in muscle recovery for high-performance athletes.
The global textile industry is rapidly shifting toward sustainable yarn alternatives to meet strict environmental regulations and shifting consumer demand. Forward-thinking brands are transitioning to organic cottons grown entirely without synthetic pesticides or fertilizers. Recycled polyesters (rPET), extruded from post-consumer plastic bottles, now match virgin polyester in tensile strength and performance. Bamboo blends offer a rapidly renewable resource that produces a naturally antibacterial, hypoallergenic, and highly breathable finished textile.
Standard woven manufacturing techniques will destroy knitted fabrics on the sewing floor. Factory managers must overhaul machine tooling, tension settings, and handling protocols to process knits successfully. Failure to adapt leads to skipped stitches, snapped seams, and permanently distorted garment dimensions.
Operators cannot use standard sharp needles on knitwear. The mandatory protocol requires Ballpoint needles (SUK or SES designation). Sharp universal needles will pierce and sever the delicate yarn loops during high-speed sewing. This causes immediate microscopic holes that expand into massive vertical runs after the first wash. A ballpoint needle features a rounded tip that safely slips between the fabric loops, parting the yarns rather than breaking them.
Feeding mechanisms require equal attention. The implementation of a Walking Foot or adjusting the differential feed on industrial machines is critical. This specialized mechanism feeds the top and bottom fabric layers simultaneously at the exact same speed. It prevents the machine's feed dogs from stretching the bottom layer unevenly, which causes severe, un-ironable puckering along the seam line.
Rigid straight stitches will snap instantly under consumer tension. Production requires flexible seam architecture. Factories must use narrow Zig-Zag stitches, industrial overlockers (sergers), or coverstitch machines. These stitch types incorporate extra thread into the seam geometry, allowing the seam to stretch safely in tandem with the fabric.
Relax the Fabric: Knits are rolled under high tension at the mill. Unroll the yardage and let it rest flat on the cutting table for 24 hours before cutting to allow the loops to relax and shrink back to their natural state.
Support the Weight: Fabric must be cut completely flat and fully supported. Allowing edges to hang off the table causes gravity to stretch the fabric downward, resulting in highly inaccurate pattern pieces.
Utilize Rotary Cutters: Avoid standard shears, which lift the fabric off the table and distort the edge. Use sharp rotary cutters and pattern weights (not pins) to maintain dimensional accuracy.
Stabilize Seams: Apply clear elastic or lightweight knit interfacing to shoulder seams and necklines to prevent these high-stress areas from stretching out of shape over time.
Knits are highly prone to pilling due to surface friction. This is especially true for synthetic blends, short-staple fibers, and loose weave structures. Friction causes loose fibers to migrate to the surface and tangle into small, unsightly balls.
Procurement teams must mitigate this during the sourcing phase. Specify tightly spun yarns and high-twist fibers. Alternatively, mandate chemical anti-pill finishes or enzymatic singeing during the dyeing process. Sourcing a certified Anti-pill Knitted Fabric drastically extends the garment's visual lifespan, reduces consumer complaints, and protects the brand's quality reputation.
Brands continue to scale with knits despite the manufacturing complexities. The economic advantages, rapid production cycles, and overwhelming consumer demand far outweigh the technical hurdles on the factory floor.
Knitting is a significantly faster, lower-step manufacturing process compared to traditional weaving. It entirely eliminates the complex, time-consuming warping process required for woven looms. This results in lower raw material costs, reduced labor overhead, and much higher production velocity. Furthermore, knitted structures exhibit high dye-affinity due to their open loop structure. This reduces processing time, water consumption, and chemical costs for complex colorways and seasonal palettes.
The Total Cost of Ownership does not end at the point of sale. Improper consumer care destroys knitwear ROI via high return rates and negative reviews. Brands must educate consumers on proper maintenance through clear care labels.
Washing protocols must mandate cold water and gentle cycles. Hot water causes the loop structure to shrink aggressively and distort permanently. Drying requires equal care. Knits must be laid flat to dry on a supported surface. Tumble drying degrades the elastane fibers through high heat and aggressively shrinks natural yarns like wool and cotton.
Storage methods dictate the garment's long-term lifespan. Knits must be stored folded on shelves. Hanging knits on standard hangers causes gravity to permanently distort the vertical wales. It stretches the garment entirely out of shape, particularly in the shoulders and neckline. Natural wool knits also require cedar blocks or moth repellents during seasonal storage to prevent insect damage.
Cross-reference commercial sewing patterns to verify the exact stretch percentage and recovery requirements before sourcing materials.
Request sample yardage to perform the 4-way stretch test, evaluate drape, and verify edge-curling behavior under tension.
Run a physical test seam using ballpoint tooling, differential feed adjustments, and stretch threads to validate the factory's production readiness.
Specify anti-pill finishes, high-twist yarns, and exact weight metrics during the initial sourcing phase to guarantee long-term garment durability.
A: 2-way stretch fabric stretches in only one direction, usually crosswise from selvedge to selvedge. 4-way stretch fabric stretches both crosswise and lengthwise. It offers maximum mobility and generally requires a percentage of elastane or spandex in the yarn blend to achieve full recovery.
A: Edge curling is an inherent structural trait of single-knit fabrics like Jersey. It occurs due to the unequal tension of the front and back loops. To avoid it entirely, source double-knit fabrics like Interlock. Alternatively, stabilize the edges with spray starch or knit interfacing before cutting.
A: Look directly at the inside (reverse) of the garment. If you see loose strings of yarn, known as floats, carried across the back of the color changes, it is Jacquard. If the inside is completely smooth with no floats, it is Intarsia.
A: Manufacturers must always use a ballpoint needle. For high-spandex blends, use a specialized stretch needle. The rounded tip of these needles slips safely between the fabric loops. Standard sharp needles will pierce and break the yarns, causing immediate holes.
A: Yes, the interlocking loop structure naturally creates microscopic air pockets, making knits inherently breathable. However, ultimate breathability depends on the yarn composition. A cotton knit is highly breathable, while a tightly knit synthetic acrylic may trap body heat.
A: Never hang knitted garments on hangers. Gravity will pull the heavy loops downward and permanently distort the shape. Always fold knitwear for storage. After washing, lay them completely flat on a towel to dry rather than hanging them on a line.
