While woven fabrics offer rigidity and weft knits provide stretch, high-performance industrial and apparel applications require a structural middle ground: run-resistant, dimensionally stable textiles produced at high speeds. Originating from Josiah Crane's invention in 1775, warp knitting has evolved into a highly advanced engineering process. Sourcing teams and product engineers often struggle to balance production scalability with precise mechanical properties, such as controlled stretch and tear resistance, when evaluating textile manufacturing methods. Understanding the exact mechanical process behind warp knitting—from yarn preparation to machine configuration—is necessary for evaluating whether this manufacturing method aligns with your product's performance requirements and total cost of ownership (TCO). By analyzing the technical mechanics, material constraints, and machine classifications, manufacturers can make informed decisions when selecting a Warp Knitted Fabric for their specific applications.
Structural Integrity: Warp knitting utilizes vertical yarn feeding and interlocking zigzag loops (overlaps and underlaps) to create run-resistant, dimensionally stable fabrics.
Production Speed vs. Setup: It is the absolute fastest method of converting yarn into fabric, but requires complex, high-precision preparation (warping) and significant upfront capital.
Material Specificity: The process heavily favors continuous filament yarns (like nylon and polyester) over spun staple yarns to maintain high-speed tension, though innovations now allow for premium wool warp knits.
Versatility: Machine variations (Tricot, Raschel, Stitch-bonding, Crochet) allow for outputs ranging from ultra-fine breathable apparel to heavy-duty 3D spacer fabrics and industrial composites.
To identify a warp knit, examine the fabric closely. The face features vertical yarn loops known as wales, while the back displays horizontal or angled floats called laps or underlaps. The "Overlap" refers to the yarn wrapping around the needle to form a loop. The "Underlap" is the lateral yarn segment connecting adjacent loops. Balancing lateral forces is a core engineering principle here. Opposing yarn movements prevent loop distortion and unraveling. Underlap length directly dictates fabric weight, thickness, and lateral stability. Longer underlaps result in a heavier, denser, and more laterally stable fabric.
| Structural Element | Definition | Impact on Fabric Properties |
Wales | Vertical columns of loops on the fabric face. | Determines the lengthwise grain and visual texture. |
Courses | Horizontal rows of loops. | Affects the crosswise stretch and density. |
Overlap | Yarn wrapping around the needle. | Forms the basic loop structure holding the fabric together. |
Underlap | Lateral yarn segment connecting adjacent loops. | Dictates weight, thickness, and lateral stability. |
The interlocking zigzag loop configuration gives warp knits their structural security. Unlike weft knits, where a single broken yarn causes a ladder or run, warp knits resist unraveling. This failure mode contrast makes warp knitting ideal for high-stress applications. Medical compression garments, automotive textiles, and safety equipment rely on this run-resistant property to maintain integrity under tension. When engineering a High Quality Warp Knitted Fabric, this interlocking mechanism ensures long-term durability.
The process begins with precision warping, which requires uniform tension. Between 600 to 800 individual yarns are wound simultaneously onto a single warp beam or bobbin. Quality control is paramount at this stage. Fluff detectors and yarn count measuring devices are utilized to prevent machine jams during high-speed knitting. Continuous filament yarns are strongly preferred because they can withstand the intense tension of the warping process without breaking.
Yarn Creeling: Spools of continuous filament yarn are loaded onto a large frame called a creel.
Tensioning: Each yarn passes through tensioning devices to ensure uniform pull.
Winding: Yarns are wound onto the warp beam simultaneously.
Inspection: Optical sensors detect slubs, breaks, or tension inconsistencies.
A typical warp knitting machine utilizes 4,000 to 5,000 needles, with each needle often fed by its own dedicated yarn. The mechanical sequence involves yarn guides feeding the needles, the presser bar closing the needle hooks, and the knock-over mechanism releasing the old loop to form the new one. Modern machines utilize CAD software and multiple guide bars, often four or more, to create over 18 geometric configurations per cycle and upwards of 324 total combinations.
Post-knitting processes include washing, heat-setting for dimensional stability, and texturizing. Proper heat-setting ensures the fabric maintains its shape and performance characteristics over time. This finishing stage is where a Premium Warp Knitted Fabric achieves its final hand-feel and compliance with industry standards like OEKO-TEX.
Tricot machines are characterized by high-speed production, fine gauge, and minimal lateral stretch. The resulting fabric profile features a smooth face with vertical ribs and horizontal ribs on the back, offering excellent drape. Applications include intimate apparel, lightweight activewear, and linings.
Raschel machines feature a heavier gauge and highly flexible needle systems, making them capable of complex openwork. The fabric profile is often bulky, highly textured, or features intricate lace patterns, with low stretch unless elastane is introduced. Applications include 3D spacer fabrics, military mesh, automotive interiors, and heavy-duty Versatile Warp Knitted Fabric.
Milanese knitting offers diagonal yarn movement for superior tear resistance. Simplex creates dense, thick fabrics ideal for gloves and handbags. Ketten Raschel is used for raised, multi-colored elastic patterns, while Crochet machines produce specialized nets and bedspreads. Stitch-bonding is utilized for technical textiles and composites, such as fiberglass reinforcement for wind turbines. Seamless or 3D knitting produces tubular, seamless garments up to 6 meters wide.
The high tension and speed of warp knitting make spun yarns, like standard cotton, difficult to process without excessive breakage. Therefore, synthetic continuous filaments dominate the process. The performance benefits of Nylon Warp Knitted Fabric include high durability and abrasion resistance. Stretch Nylon Warp Knitted Fabric provides a controlled modulus, making it highly suitable for swimwear and medical use.

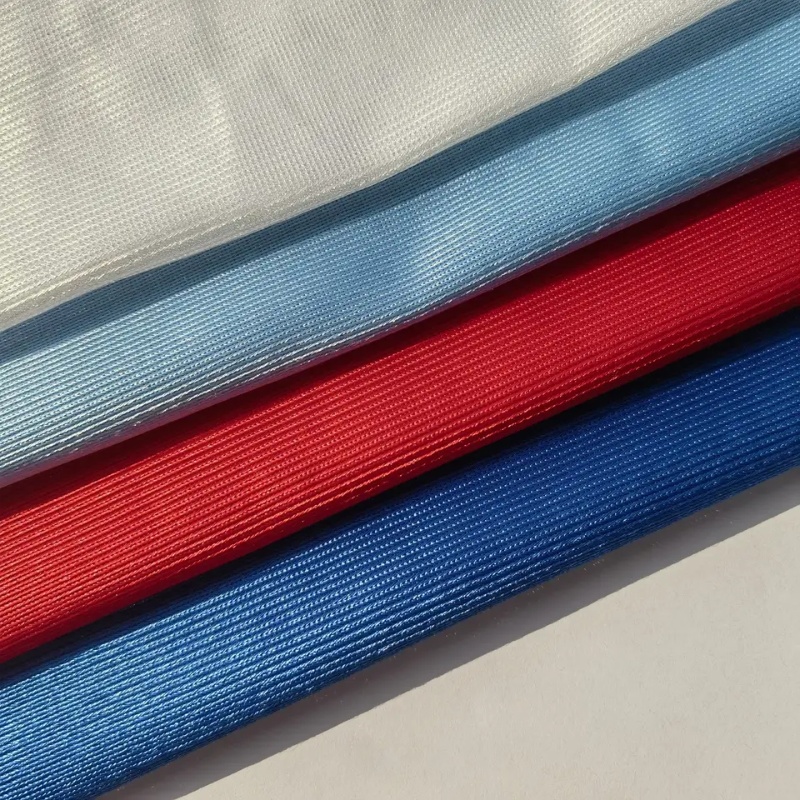

Yarn choice combined with machine gauge produces Breathable Warp Knitted Fabric for athletic wear. Innovative eco and premium alternatives include the use of wool warp knitting for sustainable, high-performance activewear. In the medical field, specialized use cases involve the development of artificial blood vessels using ultra-fine biocompatible filaments.
| Feature | Warp Knitting | Weft Knitting |
Yarn Direction | Vertical (lengthwise) | Horizontal (crosswise) |
Elasticity | Controlled, measurable stretch | Extreme, multi-directional elasticity |
Stability | High dimensional stability | Lower stability, prone to distortion |
Yarn Compatibility | Requires high-tensile filaments | Accommodates almost any yarn, including short staples |
Warp knitting machines operate at exceptionally high speeds across wide widths, making them highly efficient for large volume runs. However, warp knitting requires time-intensive warping and high minimum order quantities (MOQs). Conversely, weft knitting allows for rapid prototyping and quick yarn changes, making it better suited for smaller, highly variable production runs.
Warp knitting requires high capital expenditure for machinery and significant labor costs associated with beam preparation. However, the low defect rate, run-resistance, and massive throughput drive down the per-yard cost at scale. For large-volume production, the long-term efficiency heavily outweighs the initial setup costs.
Yarn breakage during warping can cause massive downtime. To mitigate this, manufacturers must enforce strict raw material specifications and utilize automated optical flaw detection, such as fluff detectors. Another risk is over-engineering the fabric for the application. Aligning the choice between Tricot and Raschel directly with the required physical tolerances prevents unnecessary costs.
Warp knitting provides a non-raveling, dimensionally stable fabric produced at high volumes, particularly when utilizing synthetic continuous filaments. Choosing the right machine and yarn configuration dictates the final performance of the textile.
Select Tricot machines for lightweight, smooth apparel applications requiring high drape.
Choose Raschel machines for engineered mesh, 3D structures, and heavy-duty industrial textiles.
Request technical data sheets detailing underlap/overlap ratios and yarn tenacity from your supplier.
Verify compliance with relevant ISO and OEKO-TEX standards before finalizing bulk orders.
A: Warp knitting feeds yarn vertically to form zigzag loops, creating a stable, run-resistant fabric. Weft knitting feeds yarn horizontally, creating a highly elastic fabric that is prone to running if a yarn breaks.
A: The interlocking zigzag loop configuration, formed by overlaps and underlaps, secures the structure. If one yarn breaks, the surrounding loops hold the fabric together, preventing a ladder or run.
A: While synthetic continuous filaments are preferred due to the high tension of the process, innovations now allow for premium wool warp knits. Spun yarns like standard cotton remain difficult to process without excessive breakage.
A: A 3D spacer fabric consists of two separate outer fabric layers connected by a layer of spacer yarns. It is typically produced on double-needle bar Raschel machines, providing cushioning and breathability.
A: The underlap is the lateral yarn segment connecting adjacent loops. Longer underlaps require more yarn, resulting in a heavier, denser, and more laterally stable fabric.
A: Due to the complex and time-intensive warping process required to set up the machine, warp knitting typically requires high MOQs compared to weft knitting, making it best suited for large volume production.
