For procurement teams and product engineers in the industrial and technical apparel sectors, material selection dictates product lifespan, manufacturing efficiency, and ultimate market viability. As the global knit fabric market projects growth from $174 billion in 2024 to $294 billion by 2035 (a 4.87% CAGR), advanced knitting technologies are at the forefront of this expansion. Balancing dimensional stability with functional performance, such as breathability or compression, often forces compromises when relying on traditional woven or weft-knit textiles. This guide breaks down the structural mechanics, verifiable performance metrics, and procurement realities of Warp Knitted Fabric to help you determine if it aligns with your specific manufacturing requirements and Total Cost of Ownership (TCO) models.
Structural Superiority: Warp knitting utilizes a vertical, interlocking loop structure that inherently resists running, snagging, and shrinking (typically <2% shrinkage), outperforming weft knits in dimensional stability.
Production Efficiency: High-speed machinery (up to 1,200 rpm) combined with multi-needle systems yields high-volume, cost-effective production runs ideal for scaling industrial applications.
Application Specificity: The technology is optimal for products requiring controlled stretch (compression wear, medical textiles) and complex structures (3D spacer fabrics, engineered mesh), though it requires strategic blending (e.g., spandex) to achieve multi-directional elasticity.
Procurement Precision: Sourcing high quality warp knitted fabric requires strict specification of parameters including micron rating, tensile strength, and necessary functional finishes (FR, antimicrobial).
Understanding the fundamental differences between textile constructions is necessary for accurate material selection. In warp knitting, yarns run vertically in the warp direction, forming interlocking loops in a zigzag pattern. Because each needle operates with its own dedicated yarn, the resulting structure is highly stable and inherently run-resistant. This contrasts sharply with weft knitting, where a single yarn travels horizontally, making the fabric prone to unraveling and higher shrinkage rates. Woven fabrics, created by interlacing yarns at right angles, offer maximum strength and minimal stretch but lack the structural flexibility and breathability inherent to knits.
When evaluating these materials for industrial or apparel use, engineers must look at the quantitative data. The table below outlines the baseline metrics that separate these three primary textile constructions.
| Metric | Warp Knitted | Weft Knitted | Woven |
Production Speed | Up to 1,200 rpm | 20–60 rpm | Variable (generally slower) |
Stretch Capability | 5–15% (Controlled/Directional) | 25–50% (Multi-directional) | Minimal to None |
Shrinkage Rate | <2% | 5–8% | <2% |
Typical Yarn Count | 40–150 denier | 20–80 denier | Highly Variable |
Estimated Cost (per meter) | $2.00–$3.50 | $1.50–$2.80 | Varies by complexity |
Run Resistance | High (Interlocking vertical loops) | Low (Single horizontal yarn) | High (Interlaced yarns) |

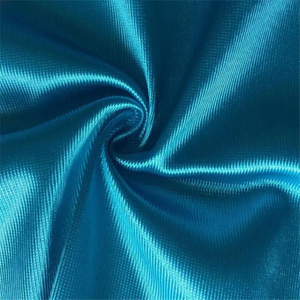

The manufacturing of these textiles relies on specialized machinery, each designed to yield specific structural characteristics. Tricot machines are engineered for high-speed, high-volume production, yielding a smooth, stable textile that serves as an ideal foundation for base layers, automotive interiors, and lightweight industrial applications. Raschel machines utilize heavier yarns and complex needle systems to generate intricate patterns, open mesh designs, and 3D spacer fabrics, making them the standard for military gear, footwear, and technical netting.
Specialized subsets like Crochet and Milano address specific aesthetic or structural demands. Crochet methods provide a hand-stitched feel suitable for heavy-duty netting, while Milano techniques deliver highly abrasion-resistant diagonal patterns. Utilizing top-tier machinery brands, such as German-engineered Karl Mayer equipment, remains a strong indicator of a manufacturer's capability to produce materials with exact tolerances. The choice of machinery directly impacts the final product's physical properties, meaning procurement teams must align their specifications with the manufacturer's equipment capabilities.
Industrial applications demand materials that maintain their structural integrity under stress. The interlocking loop structure of these textiles prevents runs and unraveling. This characteristic allows for precise, clean-cut edges, which is a requirement for automated industrial cutting processes where fraying can halt production lines. Furthermore, the high resistance to snagging and abrasion extends the lifecycle of technical textiles deployed in demanding environments, including automotive airbags, medical implant meshes, and architectural geotextiles.
For example, in the automotive sector, materials used for headliners and seating must withstand years of UV exposure, temperature fluctuations, and physical abrasion. The inherent stability of a vertically interlocked loop structure ensures that the material does not sag or lose its shape over a ten-year vehicle lifespan. Similarly, in medical applications like hernia repair meshes, the material must not degrade or unravel when cut to specific surgical dimensions.
One of the most significant engineering advantages is the ability to knit two distinct outer layers connected by a central spacer yarn layer. This 3D spacer configuration effectively replaces polyurethane foam in automotive seating and medical mattresses. It provides superior airflow, pressure distribution, and moisture management without degrading or crumbling over time. Additionally, porosity and breathability can be precisely controlled by adjusting machine speed, tension, and loop density, which is a specification for industrial filtration systems.
When designing filtration systems for HVAC or liquid processing, engineers can specify the exact micron rating of the mesh. The manufacturing process allows for precise control over the hole size and distribution, ensuring consistent filtration performance across thousands of meters of material. This level of structural engineering is difficult to achieve with traditional woven materials without secondary processing steps.
While the initial machinery setup and warping processes are capital-intensive, the high production speed and multi-guide bar systems significantly drive down the per-meter cost at scale. The process generates minimal material waste, offering a highly competitive Total Cost of Ownership for large-volume industrial runs when compared to complex woven alternatives.
To maximize cost-effectiveness, procurement teams should consider the following operational steps:
Consolidate orders to meet higher Minimum Order Quantities (MOQs), thereby absorbing the initial warping and setup costs across a larger volume.
Standardize yarn deniers across multiple product lines to reduce the need for frequent machine changeovers.
Partner with suppliers who operate high-speed Tricot machines for base layers, reserving the slower, more complex Raschel machines only for specialized 3D spacer or heavy mesh requirements.
Unlike weft knits that stretch uniformly—making them ideal for yoga wear requiring a soft, second-skin feel—warp knits offer a controlled, measurable modulus or power. When navigating the sportswear decision tree, procurement teams should default to these textiles for medical compression garments, professional swimwear, and shapewear. In these applications, consistent muscle support and high pilling resistance are absolute requirements.
The controlled stretch is achieved by the vertical orientation of the yarns. While the fabric naturally resists stretching in the vertical direction, engineers can introduce specific percentages of elastane to create a calculated stretch in the horizontal direction. This creates a garment that supports the wearer's muscles during high-impact activities without losing its shape after repeated wash cycles.
Open loop structures facilitate rapid moisture transfer and evaporation. A Breathable Warp Knitted Fabric prevents moisture accumulation against the skin. These quick-drying properties actively prevent bacterial buildup, establishing the material as the industry standard for athletic mesh, outdoor gear, and performance linings.
In technical outerwear, these materials are often bonded with TPU membranes to create softshell fabrics that offer both weather resistance and internal moisture management. The knitted backing provides a comfortable, moisture-wicking layer against the body, while the outer face can be treated with Durable Water Repellent (DWR) finishes.
A Versatile Warp Knitted Fabric can be engineered into various tactile finishes without sacrificing its core dimensional stability. The primary variations include:

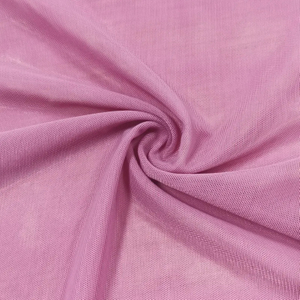

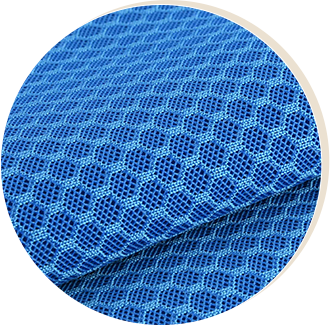

Warp Knitted Mesh: Lightweight, elastic, and highly breathable, designed primarily for summer activewear and footwear linings.
Warp Knitted Velvet: Features a thick, upright pile that provides excellent thermal insulation for winter apparel and upholstery.
Warp Knitted Loop (Terry): Highly absorbent and durable, making it suitable for sportswear, towels, and loungewear.
Warp Knitted Pile: Offers excellent drape and quick-drying capabilities, though it often requires specific anti-static finishing to prevent dust accumulation.
These textiles inherently lack the four-way stretch found in standard weft knits. Achieving high elasticity requires blending the base yarns with high percentages of elastane or spandex. While this resolves the stretch limitation, it complicates the dyeing process and can impact the long-term durability of the garment, as elastane degrades faster than polyester or nylon under harsh washing conditions.
When designing garments that require high stretch, product engineers must calculate the exact percentage of elastane needed. Over-engineering the stretch component will unnecessarily increase the material cost and reduce the garment's lifespan. A typical blend for compression wear might include 15-20% elastane, whereas a standard industrial mesh will use 100% polyester for maximum durability.
The complexity of preparing warping beams and setting up multi-guide bar machines creates a high barrier to entry for small production batches. Consequently, low-volume custom runs are generally economically unviable, requiring brands to commit to larger Minimum Order Quantities (MOQs) to absorb the initial setup costs.
A standard warping beam can hold thousands of meters of yarn. If a brand only requires 500 meters of a custom color or specific technical blend, the manufacturer must still go through the labor-intensive process of setting up the beam. This reality forces procurement teams to forecast demand accurately and commit to larger production runs to achieve a viable per-meter price point.
Synthetic variations made from polyester and nylon face increasing environmental scrutiny regarding microplastic shedding during washing cycles. Procurement teams must proactively evaluate sustainable alternatives to meet strict Environmental, Social, and Governance (ESG) compliance standards. Utilizing yarns extruded from recycled ocean plastics or integrating biodegradable synthetic fibers are necessary steps for forward-thinking manufacturers.
To ensure ESG compliance, procurement teams should implement the following checklist:
Require Global Recycled Standard (GRS) certification for all recycled polyester or nylon yarns.
Mandate the use of closed-loop dyeing processes to minimize wastewater discharge.
Specify the application of anti-shedding finishes to reduce microplastic release during consumer washing.
Audit suppliers for fair labor practices and safe working conditions in their manufacturing facilities.
Securing a Premium Warp Knitted Fabric requires drafting an exact specification sheet. Procurement officers must specify exact requirements for tensile strength and tearing strength using recognized testing standards, such as ASTM D2261. For filtration or mesh applications, the spec sheet must define the exact mesh hole size, micron rating, and required porosity. Furthermore, specifying the use of high-strength synthetic fibers is necessary if enhanced stiffness or load-bearing capacity is required.
A comprehensive specification sheet leaves no room for interpretation. It must include the exact yarn denier, the required machine gauge (needles per inch), the finished weight in grams per square meter (GSM), and the acceptable tolerance levels for shrinkage and color matching. Providing physical reference samples alongside the written specification ensures the manufacturer understands the exact tactile and structural requirements.
Performance textiles rarely rely on structural mechanics alone. Detail necessary chemical or mechanical treatments at the specification stage. Common requirements include Flame Retardant (FR) coatings for automotive and aerospace, Antimicrobial (AM) treatments for medical and athletic wear, UV protection for outdoor gear, and Anti-static finishing, which is particularly required for pile and velvet variations.
| Functional Finish | Primary Application | Testing Standard |
Flame Retardant (FR) | Automotive, Aerospace, Upholstery | FMVSS 302, NFPA 701 |
Antimicrobial (AM) | Medical Textiles, Activewear | AATCC 100, ISO 20743 |
UV Protection | Outdoor Gear, Awnings | AATCC 183 |
Anti-Static | Industrial Filtration, Pile Fabrics | EN 1149 |
To guarantee the delivery of a High Quality Warp Knitted Fabric, verify that the supplier utilizes modern, calibrated machinery. Request documentation proving they hold relevant quality and safety certifications, such as ISO 9001:2015 for quality management systems and OEKO-TEX Standard 100 to ensure the textiles are free from harmful substances.
Supplier verification should also include an assessment of their internal testing laboratories. A manufacturer capable of conducting in-house tensile, abrasion, and colorfastness testing will identify and correct production deviations much faster than one relying on third-party labs. This internal capability directly translates to more consistent product quality and fewer rejected shipments.
Warp knitted textiles are not a universal solution for every manufacturing need, but they remain the definitive choice when dimensional stability, run-resistance, and high-volume production efficiency are non-negotiable. By understanding the structural mechanics and specifying exact performance metrics, procurement teams can leverage these materials to enhance product durability and lower long-term costs.
Audit current material failure rates, specifically looking for issues related to snagging, unraveling, or excessive shrinkage in your existing product lines.
Map your product requirements against the stretch and stability metrics to determine if a transition from weft to warp knitting is structurally viable.
Consult with a specialized textile engineer to draft a comprehensive technical specification sheet that includes required ASTM testing standards and functional finishes.
Request sample yardage from certified suppliers utilizing modern equipment to conduct internal abrasion and TCO evaluations.
A: Warp knits generally cost between $2.00 and $3.50 per meter due to complex machinery setup and higher yarn counts. Weft knits are typically less expensive, ranging from $1.50 to $2.80 per meter, making them more cost-effective for basic apparel but less durable for industrial use.
A: While inherently limited in multi-directional stretch, it can be engineered for four-way stretch activewear by blending the base synthetic yarns with a high percentage of elastane (spandex). However, weft knits remain the industry default for yoga wear due to their natural flexibility.
A: 3D spacer fabrics provide superior breathability, moisture management, and pressure distribution compared to polyurethane foam. Unlike foam, spacer fabrics do not crumble, degrade, or retain excessive heat over time, making them a more durable and comfortable alternative.
A: Due to the vertical, interlocking loop structure, these textiles exhibit excellent dimensional stability. Standard shrinkage rates are typically less than 2% after washing, which is significantly lower than the 5-8% shrinkage commonly seen in weft knits.
A: Static buildup, which attracts dust and lint, is a common issue with synthetic pile fabrics. This is prevented by applying specialized anti-static chemical finishes during the final stages of textile processing, which must be explicitly requested in the procurement specification sheet.
A: Procurement specifications should mandate recognized industry standards such as ASTM D2261 for tearing strength, ASTM D5034 for tensile strength, and specific ISO standards for abrasion resistance and colorfastness, depending on the final industrial application.
