Sourcing industrial textiles demands absolute structural stability, run-resistance, and high-speed scalability. For sourcing managers and textile engineers, the risk of product failure, dimensional instability, and high Total Cost of Ownership (TCO) is a constant threat when selecting the wrong knit structure or partnering with an unverified supplier. The stakes are incredibly high. A single failure in tension control or heat setting can compromise an entire production run, leading to massive financial losses and delayed product launches.
This comprehensive guide serves as a technical evaluation framework. It helps you understand warp knitting mechanics, compare structural variants, and evaluate production quality. By mastering the micro-structure of Warp Knitted Fabric, you can make informed decisions. These decisions ensure durability, optimize production efficiency, and align with your specific industrial applications. We provide actionable insights to streamline your procurement process and secure reliable textile partnerships.
Structural Superiority: Warp knitting creates interlocking vertical loops (overlap/underlap), delivering higher tear resistance and lower elongation compared to weft knitting.
Production Efficiency: Industrial tricot machines operate at 2,000–3,500 courses per minute, offering unmatched yarn utilization and production speed.
Advanced Capabilities: Double-needle bar technology enables zero-waste, seamless garment production, significantly reducing downstream cut-and-sew costs.
Sourcing Criticality: Selecting a reliable Warp Knitted Fabric manufacturer requires auditing their tension control during beaming and their heat-setting protocols to guarantee dimensional stability.
The microscopic architecture of warp knitting involves multiple yarns interlooping simultaneously in the longitudinal direction. This vertical sequence forms the foundation of the fabric's structural integrity. The process relies on two critical yarn segments: the overlap and the underlap. Understanding these elements is essential for engineering textiles with specific performance characteristics.
The overlap is the segment of yarn wrapped around the needle during loop formation. It forms the visible face of the stitch. The underlap is the yarn segment connecting two overlaps across adjacent courses. It is typically visible on the back of the fabric. The configuration of these elements dictates the fabric's physical properties, including weight, stretch, and stability.
Loops are classified as either closed or open laps. Closed laps occur when the underlap and overlap move in opposite directions. This creates a tighter, denser structure suitable for rigid applications. Open laps happen when they follow the same direction. This results in a more open, stretchable fabric ideal for apparel.
The "Length Rule" is a fundamental principle in warp knitting engineering. Longer underlaps increase transverse stability, weight, and density because the yarn covers more wales. Conversely, shorter underlaps decrease transverse stability but increase longitudinal stability. Industrial machines manage the lateral force caused by warp tension by introducing a second set of yarns moving in the opposite direction. This counteracts loop inclination and ensures a balanced structure.
Lap Type | Movement Direction | Structural Impact | Primary Application |
Closed Lap | Opposite directions | Tighter, denser, less stretch | Technical textiles, upholstery |
Open Lap | Same direction | Open, flexible, higher stretch | Activewear, lightweight apparel |
The Pillar or Chain Stitch forms loops continuously on the same needle with no transverse underlaps. This creates a structure that is highly stable longitudinally but offers minimal transverse connection. It results in low yarn consumption. It is often used as a stabilizing base in complex patterns, providing a rigid backbone for other yarns to build upon.
The Tricot Stitch utilizes a 1 and 1 lapping movement. Yarns alternate between adjacent wales. This creates a lightweight, flexible structure with a smooth surface. It is ideal for apparel, fine textiles, and applications requiring a soft hand-feel.
The Cord Stitch employs a 2 and 1 lapping movement. It overlaps yarns every two wales. This increases transverse stability and overall fabric weight. It makes the textile suitable for applications requiring greater durability and structure, such as automotive interiors.
Warp knitting and weft knitting serve different industrial needs based on their structural mechanics. Warp knitting is characterized by its run-resistance and low elongation. The vertical interlocking of multiple yarns prevents ladders if a yarn breaks. This offers superior structural stability for demanding environments.
Weft knitting is formed by a single yarn running horizontally. It provides high elasticity and stretch but is prone to unravelling. This makes it less suitable for applications requiring high dimensional stability.
Yarn utilization in warp knitting is highly efficient. Because it uses multiple yarns simultaneously, it reduces waste and improves overall yield. This makes it a cost-effective choice for large-scale production runs. Production speed is another major differentiator. Warp knitting machines operate at significantly higher output rates compared to weft knitting machines.
| Feature | Warp Knitting | Weft Knitting |
Yarn Direction | Vertical (Longitudinal) | Horizontal (Transverse) |
Structural Stability | High (Run-resistant, low stretch) | Low (Prone to unravelling, high stretch) |
Production Speed | Very High (up to 3,500 courses/min) | Moderate |
Yarn Utilization | Multiple yarns simultaneously | Single yarn continuously |
The foundation of Premium Warp Knitted Fabric lies in raw material selection. The choice of yarn directly dictates the final product's performance characteristics. Engineers must carefully match yarn profiles to the intended application.
Polyester: Chosen for moisture-wicking properties, durability, and vibrant color retention.
Nylon: Selected for exceptional tensile strength, abrasion resistance, and a smooth feel.
Spandex: Integrated for elastic recovery and flexibility in activewear applications.
Cotton: Used in blended structures to enhance breathability and natural comfort.
The beaming process is a critical preparatory step. It involves winding up to 256 yarns onto a warp beam through a fine comb. This ensures the yarns are parallel and ready for the knitting machine. Precision here is non-negotiable.
Tension control during beaming is the most critical failure point. Inconsistent tension leads to yarn breakage, machine downtime, and severe fabric distortion. To mitigate friction and improve weaving efficiency, manufacturers often apply synthetic oils or wax to the yarns during this stage. You must verify a Warp Knitted Fabric supplier has automated tension control systems.
The knitting process relies on the synchronized movement of three core machine elements. Guide bars control the lateral movement of the yarns. They dictate the structural pattern and lapping movements. They ensure the yarn is precisely positioned for the needles during every cycle.
Needles execute the vertical loop formation. They pull the yarn through previously formed loops to create the fabric structure. The type and gauge of the needles determine the fabric's fineness and overall density.
Sinker bars hold the fabric structure in place during the knitting cycle. They prevent the fabric from rising with the needles. This ensures clean, consistent loop formation and prevents structural defects.
The industrial finishing workflow transforms the raw knit into a functional textile. This process requires precise chemical and thermal management.
Heat Setting: Controlled heat stabilizes synthetic fibers. This prevents future shrinkage and locks in the fabric's dimensional stability.
Dyeing and Printing: Application of color using low-impact dyes suitable for specific synthetic or natural blends.
Washing and Softening: Post-dyeing treatments remove chemical residues and achieve the desired hand-feel.
Functional Finishing: Post-processing applications create specialized textiles. For example, applying fluorocarbons creates Waterproof Warp Knitted Fabric.
Surface Finishing: Brushing techniques create velvet or fleece textures, altering the tactile properties.
Final QC: Automated inspection systems scan for defects, ensuring consistency.
Cutting and Packing: The fabric is rolled, packaged, and prepared for secure shipping.
Tricot machines typically operate with 18-40 needles per inch at speeds of 2,000-3,500 courses per minute. They are characterized by fine, smooth surfaces and high output. Tricot production relies heavily on continuous filament synthetic yarns. This makes it ideal for lightweight apparel, linings, and automotive interiors.
Raschel machines operate with 12-32 needles per inch at speeds of 500-2,000 courses per minute. They are characterized by larger patterns, coarser yarns, and open-hole designs. Raschel fabrics are often used for decorative laces, netting, and heavy-duty technical applications where complex structures are required.
| Parameter | Tricot | Raschel |
Needles per Inch | 18 - 40 | 12 - 32 |
Production Speed | 2,000 - 3,500 courses/min | 500 - 2,000 courses/min |
Surface Texture | Fine, smooth | Textured, open-hole, patterned |
Common Applications | Apparel, linings, automotive | Lace, netting, technical textiles |
Lock-Knit fabric is renowned for its anti-laddering properties. It features two vertical loops on the face and two needle underlaps on the back. This structure is widely used in high-performance wear, such as reverse lock-knit for Sharkskin suits. Stability is paramount in these applications.
Milanese is a premium Tricot variant distinguished by a diagonal rib on the back. It offers superior smoothness, elasticity, and durability compared to standard Tricot. It comes at a higher production cost due to its complex manufacturing process. It is favored for luxury intimate apparel.
Simplex fabrics are produced using back-to-back Tricot machines. This creates a dense, double-faced fabric that is often sueded. It is frequently used for high-end gloves and luxury bags requiring a substantial, leather-like feel.

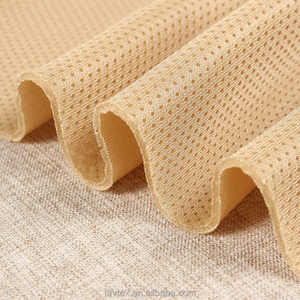

Mesh fabrics are modified Tricot structures forming square, round, or hexagonal holes. They provide high breathability. This makes them essential for summer apparel, athletic wear, and footwear linings.
Velvet and Loop Pile fabrics are Raschel-produced textiles utilizing cut-pile or synthetic base/cotton weft combinations. They are ideal for winter wear and sleepwear. These fabrics require specific washing temperatures to maintain pile integrity and prevent matting.
Jacquard fabrics feature 3D patterned designs with excellent drape. They are commonly used for outerwear and decorative textiles. Flocked fabrics use a polyester or viscose base treated with a brushing process to create a wool-like suede finish. They are perfect for winter windbreakers.
Pile and flocked fabrics can accumulate static and attract dust. They require specific anti-static care protocols to maintain their appearance and functionality over time. Proper maintenance extends the lifecycle of these specialized textiles.
Double-needle bar Raschel machines utilize a V-shaped, back-to-back needle bed configuration. This allows yarns to overlap at any point between the two beds. It enables the production of seamless tubular structures directly on the machine. This technology represents a massive leap in manufacturing efficiency.
The scale of this technology is impressive. A single seamless long-sleeve shirt can utilize up to 5,000 warp yarns and 1,322,000 loops. It is produced at a rapid rate of 600 courses per minute. This capability revolutionizes garment manufacturing by eliminating multiple downstream steps, saving time and labor costs.
Seamless warp knitting eliminates the traditional cut-and-sew processes. This drastically reduces fabric scrap. It achieves a "zero-waste" manufacturing cycle that aligns with modern environmental standards. Brands can significantly lower their carbon footprint by adopting this technology.
The industry is increasingly adopting recycled polyester and low-impact dyeing techniques. These sustainable practices help B2B buyers meet strict environmental mandates while maintaining high product performance. Sourcing from an eco-conscious Warp Knitted Fabric manufacturer is now a strategic imperative.
Modern QC protocols rely on sensor-based real-time monitoring. These systems detect yarn breakage, irregular loops, needle or sinker damage, and guide bar misalignment instantly during production. This immediate feedback loop prevents large-scale manufacturing errors.
Identifying a supplier with automated defect detection significantly lowers the buyer's TCO. It reduces unusable yardage and prevents catastrophic structural failures in the final product. High yield rates directly translate to better profit margins for procurement teams.
When evaluating a manufacturer for High Quality Warp Knitted Fabric, buyers must use a strict evaluation matrix. This ensures consistent quality and reliable delivery schedules.
Verify their tension control systems during beaming to ensure consistent yarn feeding.
Demand proof of rigorous heat-setting processes to guarantee dimensional stability.
Assess their capacity for specialized finishing, such as waterproof or antimicrobial treatments.
Ensure transparency in their yarn sourcing and environmental compliance to mitigate supply chain risks.
Request documentation on their automated defect monitoring capabilities.
Warp knitting remains the definitive choice for applications requiring structural integrity, run-resistance, and scalable production. Buyers must carefully align the fabric structure with their specific end-use. Distinguishing between lightweight apparel and heavy-duty technical textiles is necessary for optimal performance.
Request comprehensive technical data sheets from potential suppliers to verify structural specifications.
Demand documented proof of automated tension control and heat-setting protocols before signing contracts.
Order sample yardage to conduct independent tear-resistance and dimensional stability testing.
Audit the supplier's environmental compliance and zero-waste manufacturing capabilities.
A: Warp knitting uses multiple yarns forming vertical loops simultaneously, resulting in a run-resistant, highly stable fabric with low stretch. Weft knitting uses a single yarn forming horizontal loops, creating a highly elastic fabric that is prone to unravelling.
A: Heat setting applies controlled thermal energy to synthetic fibers, locking their molecular structure. This prevents future shrinkage and dimensional distortion, ensuring the fabric maintains its shape during consumer use and washing.
A: Lock-Knit fabric achieves run-resistance through a specific configuration of two vertical loops on the face and two needle underlaps on the back. This interlocking structure prevents ladders from forming even if a yarn breaks.
A: Yes, double-needle bar Raschel machines use a V-shaped needle bed configuration to overlap yarns between beds. This produces seamless tubular structures directly, eliminating cut-and-sew processes and achieving zero-waste manufacturing.
A: Prioritize manufacturers with automated defect monitoring, verified tension control systems during beaming, rigorous heat-setting protocols, and the capacity for specialized functional finishing.
A: Waterproof properties are achieved during the post-knitting finishing stage by applying fluorocarbons or similar Durable Water Repellent (DWR) treatments to the fabric surface.
A: Pile warp knits can accumulate static electricity and attract dust easily. They also require specific washing temperatures and anti-static care protocols to maintain their texture and prevent matting.
