Selecting the correct textile architecture dictates product viability, directly impacting garment drape, structural integrity, and manufacturing yield. At the core of this selection process is woven fabric, a material formed by interlacing two distinct sets of yarns at exact right angles. Misaligning fabric structure with product intent causes severe pattern-making failures. Specifying a rigid woven textile for a design requiring high multi-directional stretch leads to increased production wastage, poor ergonomic fit, and significant cost overruns. This technical guide provides an objective evaluation of woven structures, mechanical properties, and material trade-offs. Technical designers, procurement teams, and manufacturers will learn to make data-driven sourcing decisions. We outline structural anatomy, evaluate core material types, and define the technical specifications required to optimize your next industrial production run.
Structural Rigidity: Woven fabrics are constructed using intersecting warp and weft yarns, offering high dimensional stability and tensile strength but limiting stretch strictly to the bias (diagonal).
Manufacturing Economics: Unlike knits (often sold by the kilo), woven fabrics are sold by fixed widths (commonly 1.50m), requiring precise pattern-making (darts and cuts) to manage yield and fit.
Performance Metrics: Fabric selection must balance mechanical properties (abrasion resistance, tear strength) with GSM (Grams per Square Metre), which directly dictates raw material costs and production time.
Material Versatility: The base weave (Plain, Twill, Satin, Basket) dictates the fabric's physical behavior, while the fiber composition (e.g., cotton, polyester, linen) determines chemical properties like dye affinity and thermal regulation.
Textile manufacturing relies on a foundational grid structure that has evolved over millennia. Archaeologists have identified twisted yarn fragments dating back 52,000 years. Around 23,000 years ago, early populations wove plant fibers into rudimentary baskets. Excavations at the Çatalhöyük site in Turkey revealed ancient spindles from 9,000 years ago, indicating that agricultural societies spun raw fibers into continuous yarns. Approximately 7,000 years ago, the invention of the loom standardized textile production. Different regions engineered specific mechanical solutions. Asia developed complex drawlooms to manage delicate silk threads, while South America engineered portable backstrap looms. These early mechanical systems established the exact perpendicular grid structure that modern industrial shuttleless looms still utilize today.
The architecture of any woven textile depends on a strict grid system comprising two yarn sets. The vertical yarns are known as the warp (or ends). Industrial looms hold these warp yarns under high tension on a warp beam during the weaving process. The horizontal yarns are called the weft (or picks). Modern manufacturing uses shuttleless systems—such as rapier, air-jet, or water-jet looms—to draw the weft yarns through the tensioned warp at high speeds. The exact locations where these yarns cross are called interweaving points. The density and arrangement of these points dictate the fabric's final physical properties, including drape and tensile strength. During this process, the loom creates a self-finished edge called the selvage. The selvage runs parallel to the warp. It is woven tighter and thicker than the main body of the fabric to prevent the textile from unraveling during weaving, dyeing, and transportation.
Understanding the mechanical differences between woven and knitted textiles informs manufacturing protocols. They behave differently on the cutting table, require different sewing machinery, and yield different fit profiles.
Construction & Stretch: Woven textiles rely on a dual-yarn intersection. Because the yarns are packed tightly at right angles, they offer virtually no mechanical stretch on the vertical or horizontal axis. They only yield when pulled on the bias, which is the 45-degree diagonal angle. Knits utilize a single-yarn looping mechanism. These interconnected loops act like tiny springs, making knits highly elastic in multiple directions. Knits divide into two main industrial categories. Weft knits, like jersey and rib, are formed horizontally. Warp knits, like tricot and raschel, are formed vertically and resist running.
Commercial Specifications: Sourcing protocols differ based on the structure. Mills sell woven textiles by the meter or yard at fixed widths. The most common industrial width is 1.50 meters (approximately 60 inches). Buyers purchase knits differently. Mills sell knits either in tubular forms or open-width rolls, priced strictly by the kilogram.
Production Speed & Pre-treatment: Industrial knitting machines operate at higher speeds than traditional weaving looms, making knit production faster. However, knits carry a specific manufacturing liability: high shrinkage rates and dimensional instability. Factories must unroll knit fabrics and let them rest flat for 24 to 48 hours before cutting. This resting period allows the loops to relax, preventing the final garment from warping (skew and torque). Conversely, high-twist woven textiles offer immediate dimensional stability. You can cut them immediately upon delivery without a resting period.
| Feature | Woven Fabrics | Knit Fabrics |
Construction | Two yarn sets (warp and weft) intersecting at right angles. | Single yarn forming interconnected loops. |
Stretch Capability | Rigid. Only stretches on the 45-degree bias. | Highly elastic in multiple directions. |
Edge Behavior | Prone to heavy fraying (raveling). Requires overlocking. | Edges tend to curl, but warp knits resist running. |
Commercial Pricing | Sold by length (meters/yards) at fixed widths. | Sold by weight (kilograms). |
Pre-production | Ready to cut immediately. High dimensional stability. | Requires 24-48 hours of resting to prevent shrinkage. |
The physical behavior of a textile depends on its weave structure. Engineers manipulate the intersection ratio of the warp and weft to prioritize either durability, drape, or breathability.
The plain weave utilizes a 1x1 over-under construction. The weft yarn passes over one warp yarn, then under the next, repeating across the width. This structure creates the maximum possible number of interweaving points. Consequently, it produces the tightest, most durable, and structurally stable textile available. It resists snagging and maintains its shape under mechanical stress. Muslin is a standard plain weave. Medically, surgeons use sterile muslin to wrap aneurysms. Industrially, pattern-makers use cheap muslin to sew test garments, known as toiles. Poplin and taffeta also utilize a plain weave, though their specific textures come from varying the yarn thickness between the warp and weft.
The twill weave requires at least three yarns to form a complete weave cycle. It uses an offset intersection pattern, typically 2x1 or 3x1. The weft passes over two or three warp yarns before going under one. Each successive row shifts this pattern over by one yarn. This offset creates distinct diagonal lines across the fabric surface, known as wales. Twill offers superior drape, higher tear strength, and better wrinkle recovery than plain weaves. Denim is a standard twill. Mills engineer denim by dyeing the warp yarns blue while leaving the weft yarns white. Corduroy is a complex twill variation categorized by its "Wale number," which counts the ridges per inch. Standard corduroy features 8 to 13 wales per inch, while pinwale corduroy features up to 21 fine ridges per inch.
The satin weave utilizes a 4x1 or higher intersection ratio. Four or more warp yarns float over a single weft yarn before interlocking. These long, unanchored threads are called "floating yarns." This structure minimizes interweaving points, creating an exceptionally smooth surface with high luster and fluid drape. However, this aesthetic profile comes with mechanical trade-offs. Satin possesses very low abrasion resistance. The floating yarns are highly susceptible to snagging, pulling, and friction damage, making it unsuitable for heavy-duty applications. Note that "satin" typically refers to this weave executed with continuous filament yarns (like silk or polyester), while "sateen" uses the same weave with spun short-staple yarns (like cotton).
The basket weave, also known as the Panama weave, is a direct variation of the plain weave. Instead of a 1x1 ratio, it pairs yarns together in a 2x2 or 3x3 over-under pattern. Two weft yarns pass over two warp yarns simultaneously. This creates a distinct, wicker-like visual effect. The paired yarns create a looser structure than a standard plain weave. This looseness improves breathability and flexibility while maintaining baseline durability. Manufacturers frequently use basket weaves for heavier applications where flexibility is required, such as heavy canvas, oxford cloth for shirting, and durable upholstery.
| Weave Type | Intersection Ratio | Primary Advantage | Primary Disadvantage | Common Examples |

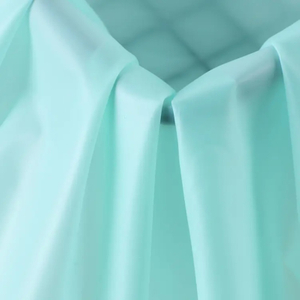

Plain | 1x1 | Maximum durability and stability | Prone to wrinkling, rigid drape | Muslin, Poplin, Taffeta |
Twill | 2x1 or 3x1 | High tear strength, good drape | More complex to weave | Denim, Gabardine, Drill |
Satin | 4x1 or higher | High luster, exceptional drape | Low abrasion resistance, snags easily | Charmeuse, Sateen, Duchess |

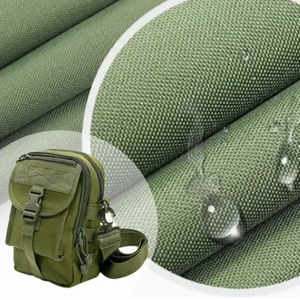

Basket | 2x2 or 3x3 | High breathability, flexible | Lower tensile strength than plain | Oxford cloth, Canvas, Monk's cloth |
When sourcing cotton woven fabric, buyers evaluate the fiber staple length. Cotton serves as the industry baseline for breathable, non-allergenic apparel. Standard upland cotton provides reliable performance for everyday garments. Luxury applications require premium long-staple variants like Pima and Supima, which feature staple lengths exceeding 1.375 inches. These long-staple fibers account for only 3% of global cotton yield. Long-staple cotton produces smoother, stronger, and more color-fast textiles. The primary implementation risk with any cotton woven is poor crease resistance. The complex woven structure locks in wrinkles, requiring factories to apply chemical finishing treatments (like formaldehyde resins) to improve wrinkle recovery.
Synthetic fibers dominate the performance and outerwear sectors. Derived from ethylene, a petroleum byproduct, polyester woven fabric offers extreme tensile strength. It boasts excellent wrinkle resistance, high color retention, and low raw material costs. Similarly, nylon woven fabric provides superior abrasion resistance and elasticity compared to polyester. Engineers measure these synthetics in denier (the weight in grams of 9,000 meters of the yarn). Both synthetics are hydrophobic, making them standard for waterproof jackets, tents, and backpacks. Buyers must weigh these performance benefits against environmental factors. Synthetics shed microplastics and rely on fossil fuels, prompting a shift toward recycled PET (rPET) alternatives.
Viscose occupies the middle ground as a semi-synthetic material. Manufacturers create viscose woven fabric using regenerated cellulose, typically extracted from wood pulp through a chemical extrusion process. It offers a highly desirable silk-like drape and excellent breathability. It absorbs moisture well, making it comfortable in warm climates. However, viscose carries specific implementation risks. It suffers from a low wet modulus, meaning the fibers weaken considerably when exposed to water. It is also highly prone to shrinkage during laundering. Factories must pre-shrink viscose and recommend dry-cleaning or gentle cold washes on the final garment care labels.
Linen represents the premium tier of bast fiber textiles. Extracted from the stalks of the flax plant through a process called retting, linen woven fabric is difficult and expensive to process. It offers superior moisture-wicking capabilities and a distinct structural crispness. It conducts heat away from the body better than cotton. Buyers balance these high-end properties against its extreme susceptibility to wrinkling. Linen fibers lack elasticity; once bent under pressure, they remain bent. The intensive extraction process results in higher raw material costs compared to standard cotton.
Technical designers define strict engineering metrics within their Tech Packs to ensure factory compliance. You must evaluate both mechanical and chemical properties using standardized testing methods, such as those provided by ASTM International or ISO.
Mechanical properties dictate physical durability. Tensile strength (tested via ASTM D5034) measures the force required to break the fabric. Extensibility measures how much it yields before breaking. Tear strength evaluates resistance to a propagating rip. Abrasion resistance (tested via the Martindale method) determines how well the surface withstands friction. Crease resistance measures recovery from folding, and pilling resistance evaluates the formation of surface fuzz balls.
Chemical properties dictate care and longevity. Dimensional stability measures shrinkage after laundering. Dye affinity determines how well the fibers hold color without bleeding (colorfastness). You must also test the fabric's reaction to heat, acids, and alkalis. Thermal and combustion behavior testing is legally required for specific categories, such as children's sleepwear.
GSM stands for Grams per Square Metre. It is the global standard for measuring textile weight and density. Understanding GSM is required for calculating Total Cost of Ownership (TCO). You can convert legacy imperial measurements easily; a 6oz fabric equals approximately 203gsm. GSM directly correlates with production costs. Higher GSM requires more raw material consumption and demands longer weaving times on the loom. Specifying a higher GSM increases your baseline material costs and shipping weights.
| Weight Category | GSM Range | Common Garment Applications |
Lightweight | 30 - 120 GSM | Chiffon blouses, sheer curtains, lightweight linings, summer button-downs. |
Medium-weight | 130 - 250 GSM | Standard t-shirts, poplin shirts, lightweight chinos, standard dresses. |
Heavyweight | 260 - 400+ GSM | Winter denim, heavy canvas, upholstery, winter coats, workwear jackets. |
The lack of natural elasticity in woven textiles creates specific pattern-making constraints. Knits stretch to accommodate body contours naturally. Wovens do not. Woven garments require complex pattern engineering to achieve an ergonomic fit. Pattern-makers incorporate darts, pleats, gathers, and precise cut lines to shape the flat fabric around a three-dimensional body. This engineering increases labor time in the cutting and sewing departments compared to knitwear production. Marker making (the layout of pattern pieces on the fabric) must be highly optimized to maintain yield, as woven pieces cannot be stretched to fit a slightly smaller cut.
Before sewing begins, factories follow a strict protocol in the cutting room to ensure quality control for woven materials:
Inspect the fabric rolls over a light table to identify and mark weaving defects, dropped picks, or dye inconsistencies.
Unroll the fabric onto the cutting table, ensuring the warp yarns align perfectly parallel to the table edge to maintain the grainline.
Align textured wovens strictly by direction. For example, when cutting corduroy, pattern pieces must align perfectly with the wale direction to prevent light-reflectance mismatch on the final garment.
Apply weights or clamps to prevent the fabric layers (the ply) from shifting during the operation of the vertical cutting knife.
Working with wovens on the factory floor requires specific handling expertise.
Fraying Management: Woven edges ravel easily once cut. The intersecting yarns lose their tension and slip out. Factories mitigate this by overlocking or serging all internal seams. French seams or bound seams are required for high-end unlined garments to enclose the raw edges completely.
Handling Slippery Wovens: Lightweight plain weaves like chiffon are slippery. They shift under the sewing machine foot, causing puckered seams. Industry professionals mitigate this by sewing the chiffon with tissue paper placed on both sides. The paper provides grip for the feed dogs. Once the seam is complete, the operator tears the paper away.
Structural Reinforcement: Certain garment areas require rigid support. Factories use Buckram to achieve this. Buckram is a coarse plain weave stiffened with wheat starch or glue. Manufacturers insert it internally to reinforce shirt collars, heavy waistbands, and the front panels of baseball caps.
Stringent environmental regulations force the textile industry to innovate. Bio-based alternatives are moving from the lab to commercial production. Mycelium, the root structure of mushrooms, is a leading innovation. Scientists grow mycelium in controlled environments and then process the extracted fibers into a sustainable woven fabric that mimics leather. These bio-wovens offer the structural integrity of traditional animal leather without the massive carbon footprint or toxic tanning chemicals.
Next-generation wovens integrate technology directly into the yarn architecture. Engineers are developing smart fabrics capable of harvesting energy from human movement. Piezoelectric yarns woven into the grid generate micro-currents as the wearer walks. Other innovations include active thermoregulation, where the weave expands or contracts based on body heat. Researchers are also testing self-healing wovens. These fabrics contain micro-capsules of repair polymers that rupture and seal minor tears without human intervention.
Artificial intelligence optimizes the weaving process. Generative AI algorithms design complex weave patterns that maximize tensile strength while minimizing yarn usage. Furthermore, 3D texture weaving changes production entirely. Traditional looms weave flat sheets that are later cut and sewn. 3D weaving machines weave a seamless, three-dimensional garment directly from the yarn. This reduces fabric offcuts, saving millions of gallons of water and massive amounts of energy in the production phase.
Woven fabrics offer unmatched structural integrity and tailored aesthetics. They remain standard for structured garments, heavy-duty outerwear, and industrial applications. Their success depends on accounting for their lack of elasticity during the design phase. Base your procurement decisions on a strict framework: determine the required mechanical properties to select the correct weave structure, choose the fiber composition based on chemical performance needs, and specify the exact GSM to lock in material costs.
To execute a successful production run, follow these immediate next steps:
Request physical swatches and technical data sheets (TDS) from your textile mills to verify mechanical properties and chemical resistance.
Prototype all new patterns using a cheap, structurally similar plain weave, like muslin, before cutting into expensive production yardage.
Calculate your required GSM to establish an accurate baseline for raw material costs, duty rates, and shipping logistics.
Implement strict overlocking and seam-finishing procedures in your tech packs to prevent edge fraying during consumer use.
A: Woven fabric is created by interlacing two sets of yarns (warp and weft) at right angles, resulting in a rigid, stable structure. Knit fabric is created by looping a single continuous yarn, which acts like a spring and provides high multi-directional elasticity.
A: Standard woven fabric does not stretch vertically or horizontally because the yarns are packed tightly at right angles. It only stretches diagonally, known as the bias. To achieve horizontal stretch, manufacturers must weave elastic fibers like spandex into the weft.
A: Woven fabrics are sold by length, typically measured in meters or yards, at fixed roll widths (commonly 1.50 meters). In contrast, knit fabrics are generally sold by weight, priced per kilogram, due to their inherent stretch and varying densities.
A: The Wale number indicates the number of raised ridges (wales) per inch across the surface of corduroy fabric. A lower number (1.5 to 6) means thicker, wider ridges, while a higher number (up to 21) indicates very fine, narrow ridges.
A: The plain weave is generally the most durable foundational structure. Because the yarns interlace in a strict 1x1 over-under pattern, it creates the maximum number of interweaving points, resulting in a tight, stable fabric that resists snagging and tearing.
A: To convert ounces per square yard (oz/yd²) to Grams per Square Metre (GSM), multiply the ounce value by 33.906. For quick industry reference, a standard 6oz fabric is approximately equal to 203gsm.
